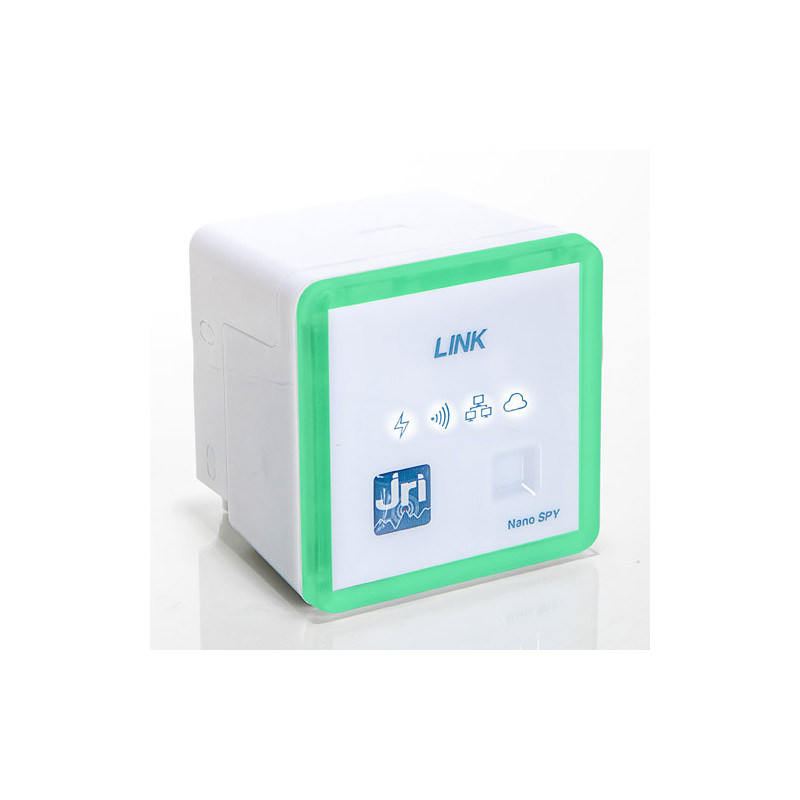

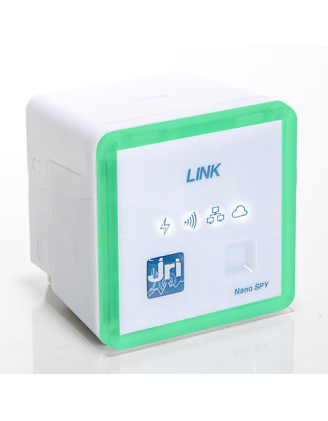

Connection Module for JRI SPY NANO

Empower your monitoring network with the Connection Module for JRI SPY NANO, the compact gateway that brings your wireless sensors online with secure Wi‑Fi or Ethernet transmission, smart visual and audible alarms, and reliable data forwarding to the JRI MySirius platform. Designed for professional environments, it automatically detects nearby Nano SPY and Nova SPY data loggers and keeps measurements flowing even during network interruptions thanks to its integrated backup battery. With simple installation, PoE-ready models and a discreet footprint, it is the effortless way to scale trustworthy temperature and humidity monitoring across laboratories, healthcare facilities, food services, logistics hubs and more.

Key Benefits and Applications

• Always‑on cloud connectivity – Automatically gathers readings from nearby Nano SPY and Nova SPY loggers and transmits them to JRI MySirius for centralised, real‑time oversight.
• Fast deployment with minimal downtime – Wall‑mount, power up and connect via Ethernet or 2.4 GHz Wi‑Fi to start receiving measurements within minutes.
• Proactive local alerts – Built‑in buzzer and luminous status bar provide instant on‑site notification so teams react quickly to threshold breaches.
• Continuity during outages – Internal rechargeable battery maintains operation for short power or network interruptions, protecting critical data.
• Scalable multi‑room coverage – 2.4 GHz communication with indoor reach suitable for equipment rooms, cold storage, incubators and clean areas depending on layout.
• Compliance support – Reliable traceability and centralised records help meet quality systems in pharma, biotech, healthcare and food safety workflows.
• Flexible installation – Compact housing with fixing eyelets and optional Power over Ethernet adapts to benches, walls and equipment racks.

Featured technical specifications

• Wireless interface to loggers – 2.4 GHz radio communication with Nano SPY and Nova SPY devices, with typical indoor range up to 40 m depending on environment and obstacles.
• Network connectivity – Ethernet 10/100 for robust wired links or 2.4 GHz Wi‑Fi IEEE 802.11b/g for flexible placement with standard encryption including WPA2‑PSK.
• Power options – External mains adaptor input 230 V AC with regulated 5 V DC output at 1 A. Power over Ethernet available on dedicated Ethernet models for single‑cable installation.
• Energy consumption – Typical average consumption from 0.5 W on Wi‑Fi operation and 0.85 W on Ethernet with peak up to 2 W, optimised for continuous use.
• Backup battery – Integrated NiMH pack around 730 mAh enabling operation during short outages, with typical autonomy of up to 6 h on Wi‑Fi and up to 4 h on Ethernet.
• Local interface and alarms – Multicolour LED light bar and status indicators, sensitive On/Off control and integrated buzzer for clear visual and audible signalling.
• Operating environment – Indoor use with IP20 protection rating, operating temperature from 0 °C to 40 °C and relative humidity from 0 % to 90 % non‑condensing.
• Physical characteristics – Compact footprint approximately 78 × 78 × 63 mm with weight around 200 g excluding adaptor, designed for easy wall or surface mounting.
• Compliance – CE marked with applicable EN standards for radio and safety to support deployment in regulated European environments.
• Model variants – Versions available with Ethernet, Wi‑Fi and optional Bluetooth Low Energy on specific models to support local supervision workflows.

Why this Connection Module is the perfect choice for your monitoring network

Choosing this Connection Module through Stratosens.com means you get a proven, professional gateway that is simple to install, robust in daily operation and ready to grow with your sensor fleet. At Stratosens.com we focus on precision, reliability and service, helping you specify the right variant, streamline configuration and integrate with existing JRI sensors and the MySirius platform. Equip your facility with a dependable link between critical measurements and actionable insight, backed by the expert support of Stratosens.com.
