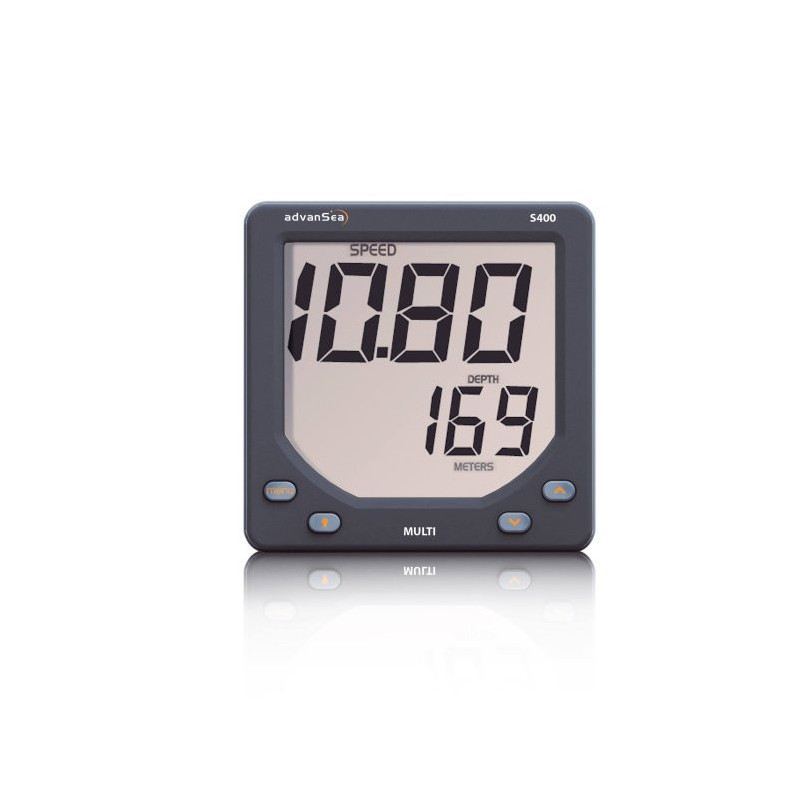

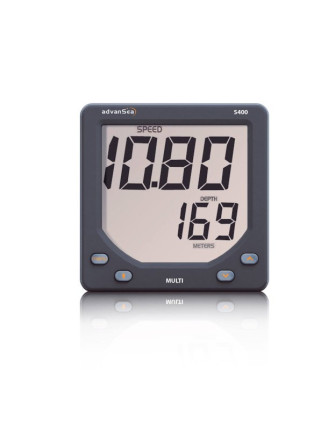

AdvanSea Multi S400 Display — Your all‑in‑one depth and speed instrument

The AdvanSea Multi S400 is a compact, elegant marine display that puts your essential navigation data where you need it most. With an ultra‑readable dual‑line LCD, bold digits and an anti‑fog, backlit screen, it delivers depth, speed, temperature and battery status at a glance. Easy to install and intuitive to use, the Multi S400 integrates seamlessly with on‑board sensors and NMEA networks, providing reliable real‑time information in all light and weather conditions. Choose the Multi S400 to simplify your cockpit, enhance situational awareness and make every mile at sea more confident and enjoyable.

Key Benefits and Applications

• Exceptional readability — Oversized digits on two lines keep your critical numbers legible from the helm or rail, perfect for day sailors and cruisers who demand instant clarity.
• All essentials in one view — Depth, speed, temperature and battery voltage presented cleanly so you can trim sails, plot approach and monitor systems without cycling through menus.
• Instant trend awareness — On‑screen arrows show rising or falling depth and speed, helping you react early in shallow approaches, tidal gates and manoeuvres.
• Smart alerts for safer passage — Customisable depth, speed and battery alarms add a proactive safety layer during night sailing, channel transits or when training crews.
• Seamless network integration — NMEA 0183 input and output plus the internal AdvanSea bus allow the unit to work solo or as part of a broader instrument suite on yachts and motorboats.
• Built to handle real marine conditions — A sealed front face and anti‑fog display support reliable viewing in spray, rain and temperature swings typical of coastal cruising.
• Fast setup and intuitive operation — Simple front keys, quick access to backlight and menu, and a simulation mode make commissioning and crew familiarisation straightforward.

Featured technical specifications

• Display and readability — High‑contrast monochrome LCD with orange backlight and anti‑fog treatment. Two‑line layout with approximately 32 mm digits on the top line and 22 mm digits on the bottom line for clear distance viewing.
• Measured and displayed data — Water depth, boat speed through water, speed over ground when available via NMEA, average speed, maximum speed, trip distance, total distance, water temperature and battery voltage.
• Trend indication — Visual arrows indicate increasing or decreasing depth and speed to support quicker decisions.
• Alarms — User‑set thresholds for shallow depth, speed limits and low battery, plus external alarm output for an auxiliary buzzer.
• Networking — NMEA 0183 version 3.01 input and output at 4800 baud. Proprietary internal AdvanSea bus for multi‑instrument setups.
• Power — 10 to 16.5 V DC supply with typical consumption under 150 mA. Settings are retained when powered off.
• Environmental protection — Front face rated to IP66 for spray and rain resistance. Designed for marine temperature ranges with robust front sealing.
• Mounting and size — Compact square footprint for flush mounting. External dimensions approximately 112 × 112 × 28 mm. Cut‑out diameter about 49 mm with installation depth close to 35 mm. Self‑adhesive gasket included for watertight panel fit.
• User interface — Illuminated keys, quick backlight control and straightforward menu navigation for rapid adjustments underway.
• Connectivity to transducers — Works with standard through‑hull speed and depth transducers. Connection hardware and harnesses designed for straightforward integration on typical installations.
• Included items — Display unit, protective cover and mounting seal. Sensor kits are available separately or bundled depending on the selected pack.

Why the AdvanSea Multi S400 is the perfect choice
