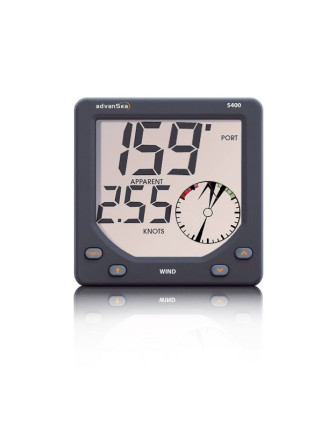

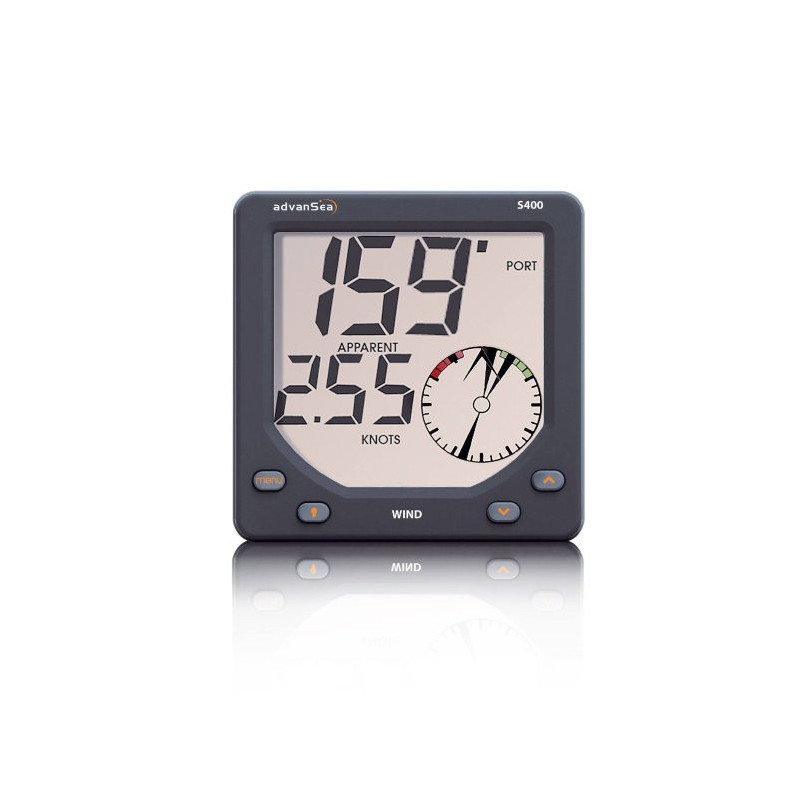

AdvanSea WIND S400 – High-precision marine wind indicator for confident navigation

The AdvanSea WIND S400 is a versatile wind instrument designed for sailors who demand clarity, speed and reliability at the helm. It delivers instant wind direction in both analog-style and digital views, calculates true and apparent wind when networked with your boat data, and offers outstanding readability on a dual-line backlit LCD. With robust marine construction and NMEA 0183 connectivity for easy integration, the WIND S400 turns changing conditions into clear decisions. Choose it as a display-only unit or as a complete kit with masthead sensor and 25 m cable, and enjoy expert service when you order at Stratosens.com.

Key Benefits and Applications

• See wind at a glance – Large, high-contrast digits and an analog-style arc let you read wind shifts instantly, ideal for quick tacks, gybes and course corrections under sail.
• Sail faster and safer – True and apparent wind data support better trim and routing, helping optimise speed while keeping clear safety margins in rising gusts.
• Seamless integration onboard – NMEA 0183 input and output allow the WIND S400 to share data with compatible instruments, chartplotters and autopilots for a unified navigation setup.
• Confidence in rough weather – A rugged, marine-rated front face and anti-fog display maintain visibility and operation when spray, rain or temperature swings would defeat ordinary gauges.
• Smart alerts that matter – High-wind and low-battery alarms draw attention to critical events, while trend indication highlights changes so you can react before they escalate.
• Flexible for any install – Available as display-only or as a complete package with masthead sensor and 25 m cable, making it perfect for new builds, refits or instrument upgrades.
• Backed by specialists – Purchase with confidence from Stratosens.com, where product expertise and responsive support streamline selection, installation and setup.

Featured technical specifications

• Measurement range – Wind speed from 0 to 199 kn, displayed in SI units as 0 to approximately 102.5 m/s and 0 to approximately 368.7 km/h, with 360° wind direction coverage.
• Wind data modes – Apparent wind and true wind for both speed and angle when connected to a compatible speed source or GPS via NMEA 0183.
• Display and readability – Dual-line monochrome LCD with transflective technology for sunlight legibility, top line approximately 32 mm characters and bottom line approximately 22 mm, amber backlight with multiple levels and anti-fog treatment.
• User feedback and safety – Built-in buzzer with external alarm output, configurable high-wind alarm, low-battery alarm and on-screen trend indication.
• Filtering and calibration – Adjustable damping from approximately 1 to 30 seconds, user calibration for apparent wind speed and angle to fine-tune accuracy.
• Interfaces – NMEA 0183 input and output for system integration, plus an AdvanSea AS-1 proprietary bus for networking multiple S400-series instruments.
• Power and consumption – 10 to 16.5 V DC supply, typical display consumption below 150 mA including backlighting.
• Environmental protection – Front-face ingress protection rated to IP66 for spray and rain resistance, operating temperature approximately −10 °C to +50 °C, storage approximately −20 °C to +60 °C.
• Mounting and dimensions – Flush-mount design with rear locking collar, panel cutout diameter approximately 48 mm, instrument size approximately 112 mm by 112 mm with low installation depth.
• Supplied accessories – Weather cover included with the display; complete kit option includes masthead wind sensor and 25 m cable for straightforward mast installation.
• Units and formats – SI-first presentation with m/s and km/h, degrees for direction, plus Beaufort available to match crew preferences.

Why the WIND S400 is the perfect choice for your boat

Choosing the AdvanSea WIND S400 at Stratosens.com means pairing a proven marine-grade instrument with specialist advice and support. You get crisp, SI-friendly wind data, easy integration with your existing network, and installation options that fit new and refit projects alike. With responsive service, fast fulfilment and knowledgeable guidance from Stratosens.com, the WIND S400 becomes a reliable cornerstone of your navigation, season after season.
